🔍 Overview

Designed and implemented a system to measure AC mains frequency using an STM32 microcontroller with proper electrical isolation.
The system safely converts AC signals into digital pulses and uses timer input capture to compute frequency in real time.

⚙️ Key Features

  • Optocoupler-based isolation for safe AC interfacing
  • Timer input capture for precise frequency measurement
  • Real-time frequency display on 16x2 LCD
  • Noise-resistant signal conditioning
  • Reliable operation for 50 Hz mains

🧠 Working Principle

  • AC mains signal is stepped down and passed through an optocoupler
  • The optocoupler generates a digital pulse corresponding to AC zero-crossing
  • STM32 timer captures the time between pulses
  • Frequency is calculated using timer difference

🧩 Hardware Used

  • STM32G431CBT6 Microcontroller
  • PC817 Optocoupler
  • Resistors and capacitors (signal conditioning)
  • 16x2 LCD Display

🛠 Tools & Software

  • Embedded C
  • STM32CubeIDE
  • PCB Design (Altium / KiCad)

💡 My Contributions

  • Designed isolation and signal conditioning circuit
  • Configured STM32 timer in input capture mode
  • Implemented LCD interface without external libraries
  • Designed custom PCB for the complete system
  • Assembled and soldered all components on PCB
  • Debugged hardware issues and ensured stable operation
  • Achieved accurate and reliable frequency computation

🔌 Circuit & PCB

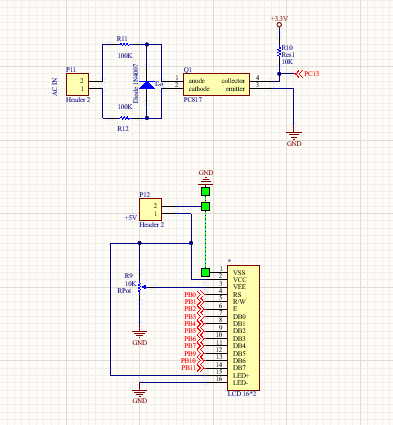

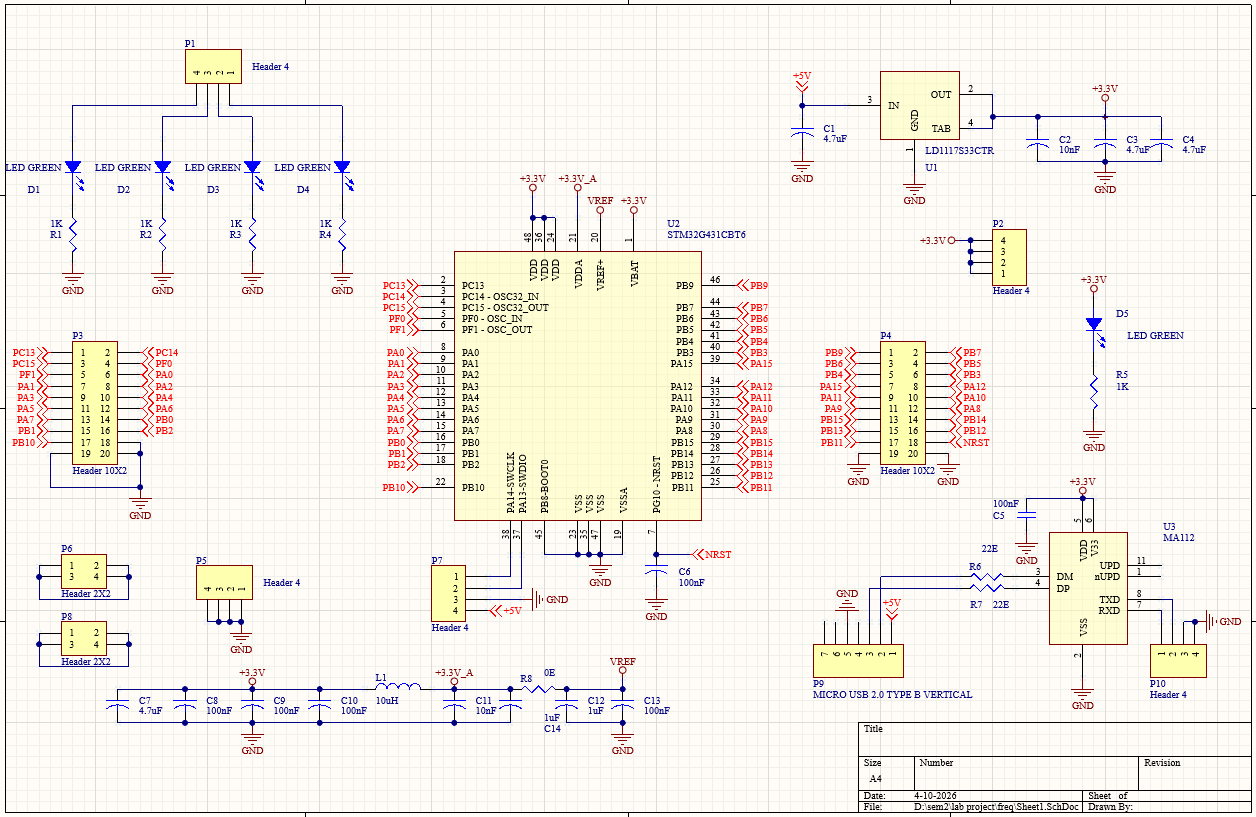

Schematic

Schematic Schematic

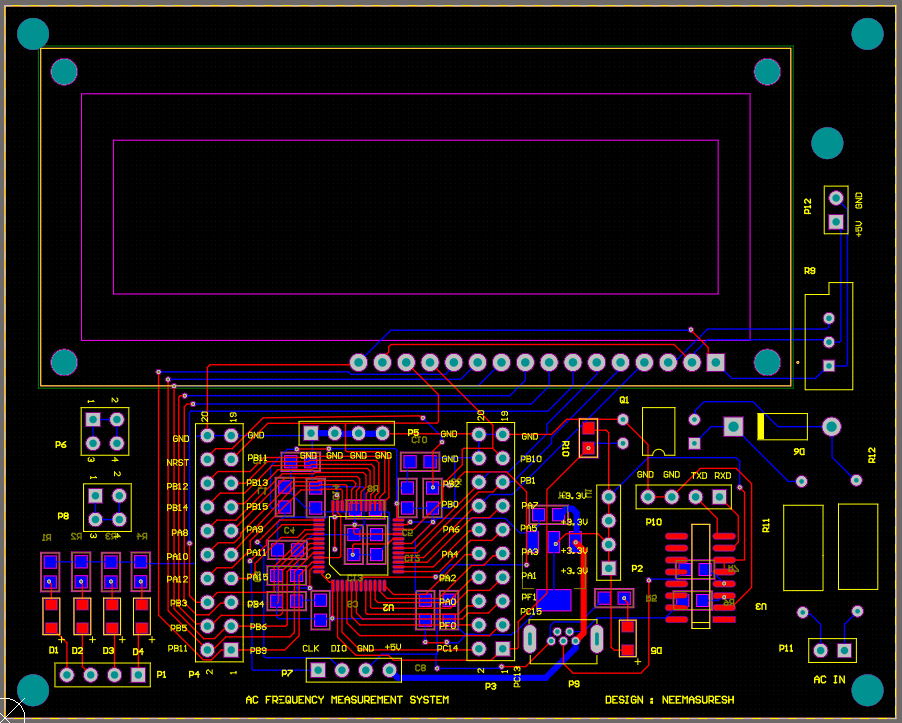

PCB Design

PCB

📊 Results

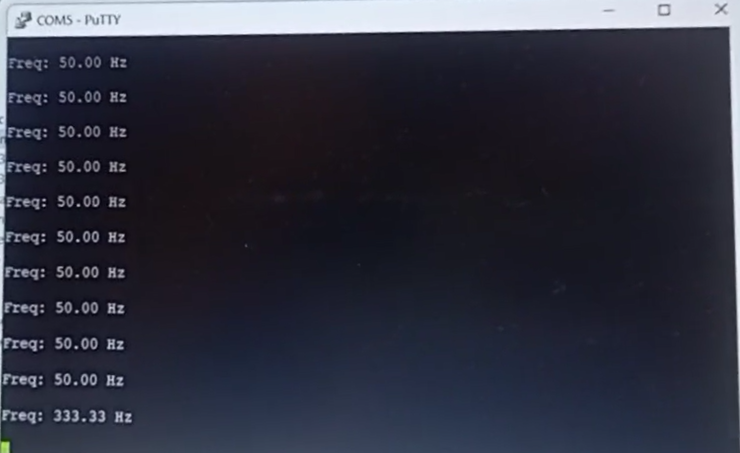

Output / Display

Output

Hardware Setup

Setup

  • Achieved accurate measurement of AC mains frequency (~50 Hz)
  • Stable readings with minimal noise interference
  • Safe operation ensured through electrical isolation
